Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments |
|---|---|---|---|---|---|---|---|---|
| id | bigserial | 19 | √ | nextval('employer_purchases."PaymentCallbackLogs_id_seq"'::regclass) |
|
|
||
| paymentNumber | varchar | 64 | null |
|
|
|||
| orderType | "employer_purchases"."enum_PaymentCallbackLogs_orderType" | 2147483647 | √ | null |
|
|
||
| orderNumber | varchar | 64 | null |
|
|
|||
| transactionId | varchar | 255 | null |
|
|
The unique identifier for this transaction as provided by the payment provider. |
||
| paymentProvider | "employer_purchases"."enum_PaymentCallbackLogs_paymentProvider" | 2147483647 | null |
|
|
|||
| callbackBody | jsonb | 2147483647 | null |
|
|
|||
| callbackHeader | jsonb | 2147483647 | null |
|
|
|||
| providerStatus | varchar | 64 | √ | null |
|
|
||
| verifyResult | "employer_purchases"."enum_PaymentCallbackLogs_verifyResult" | 2147483647 | null |
|
|
|||
| responseCode | varchar | 32 | null |
|
|
|||
| processingStatus | "employer_purchases"."enum_PaymentCallbackLogs_processingStatus" | 2147483647 | null |
|
|
Tracks the outcome of processing this callback. PENDING: the callback has been received and logged but not yet processed. SUCCESS: the callback was processed successfully — this includes cases where a duplicate callback was intentionally ignored, as idempotent deduplication is itself a successful outcome; in such cases, processInfo will contain details about the duplicate. FAILED: processing encountered an error and could not complete. |
||
| processInfo | jsonb | 2147483647 | √ | null |
|
|
||
| createdAt | timestamptz | 35,6 | now() |
|
|
|||
| updatedAt | timestamptz | 35,6 | now() |
|
|
|||
| orderSource | "employer_purchases"."enum_PaymentCallbackLogs_orderSource" | 2147483647 | null |
|
|
|||
| eventType | varchar | 255 | √ | null |
|
|
||
| referenceId | varchar | 255 | √ | null |
|
|
||
| purchaseType | "employer_purchases"."enum_PaymentCallbackLogs_purchaseType" | 2147483647 | null |
|
|
ONE_TIME: The payment log for a one-time purchase. SUBSCRIPTION: First payment log for subscription and activation. RENEWAL: It may be a renewal triggered by the business side or an auto renewal from the provider. Which renewal mode is stored in the subscription table. |
||
| eventStatus | "employer_purchases"."enum_PaymentCallbackLogs_eventStatus" | 2147483647 | null |
|
|
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| PaymentCallbackLogs_pkey | Primary key | Asc | id |
| PaymentCallbackLogs_createdAt_idx | Performance | Asc | createdAt |
| PaymentCallbackLogs_orderNumber_idx | Performance | Asc | orderNumber |
| PaymentCallbackLogs_orderSource_idx | Performance | Asc | orderSource |
| PaymentCallbackLogs_orderType_idx | Performance | Asc | orderType |
| PaymentCallbackLogs_paymentNumber_idx | Performance | Asc | paymentNumber |
| PaymentCallbackLogs_paymentProvider_idx | Performance | Asc | paymentProvider |
| PaymentCallbackLogs_processingStatus_idx | Performance | Asc | processingStatus |
| PaymentCallbackLogs_transactionId_idx | Performance | Asc | transactionId |
| PaymentCallbackLogs_verifyResult_idx | Performance | Asc | verifyResult |

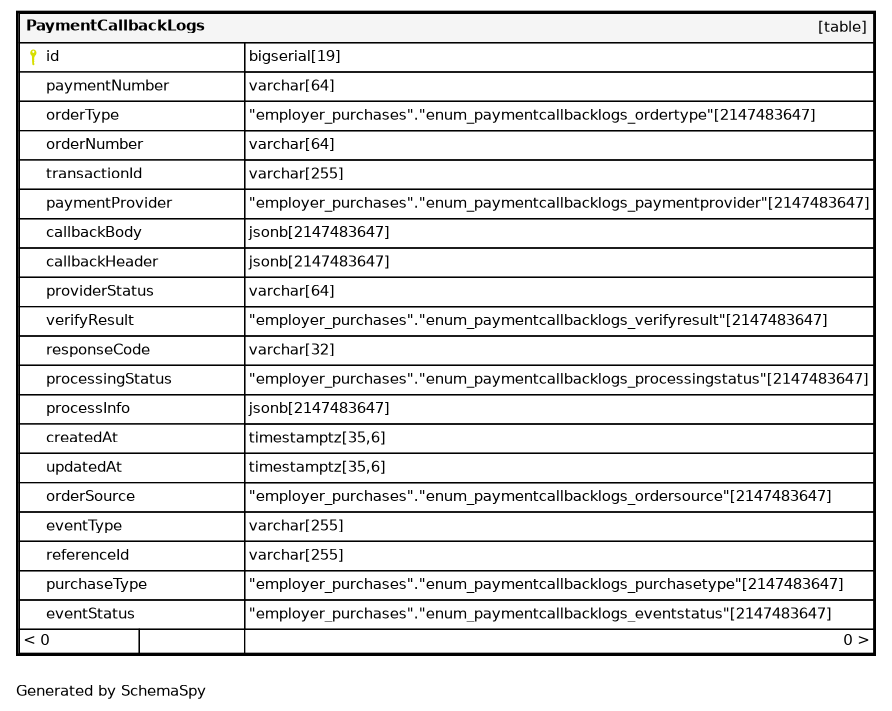

Relationships
Close relationships within degrees of separation
