Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| id | uuid | 2147483647 | null |
|
|
Primary Key. |
|||||
| UserId | uuid | 2147483647 | null |
|
|
Foreign Key references Users table, author of the post. |
|||||
| DeleteUserId | uuid | 2147483647 | null |
|
|
Foreign Key references Users table, the user who deletes the post. |
|||||
| GroupId | uuid | 2147483647 | √ | null |
|
|
foreign key, reference to gcud.“GroupTypes”. |
||||
| type | "gcud"."enum_Posts_type" | 2147483647 | null |
|
|
Deleted Post type. |
|||||
| title | text | 2147483647 | √ | null |
|
|
Deleted Question title, only for question type post. |
||||
| content | jsonb | 2147483647 | null |
|
|
Deleted Post content, a json object. |
|||||
| createdAt | timestamptz | 35,6 | now() |
|
|
||||||
| updatedAt | timestamptz | 35,6 | now() |
|
|
||||||
| reason | enum_DeletedPosts_reason | 2147483647 | null |
|
|
Deleted reason. |
|||||
| note | text | 2147483647 | √ | null |
|
|
Deleted note, addition description. |
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| DeletedPosts_pkey | Primary key | Asc | id |
| gcud_DeletedPosts_createdAt_idx | Performance | Asc | createdAt |
| gcud_DeletedPosts_GroupId_idx | Performance | Asc | GroupId |
| gcud_DeletedPosts_reason_idx | Performance | Asc | reason |
| gcud_DeletedPosts_type_idx | Performance | Asc | type |
| gcud_DeletedPosts_UserId_idx | Performance | Asc | UserId |
Check Constraints
| Constraint Name | Constraint |
|---|---|
| check_post_note | (((reason <> 'OTHER'::"enum_DeletedPosts_reason") OR ((reason = 'OTHER'::"enum_DeletedPosts_reason") AND (note IS NOT NULL)))) |
| check_post_title | ((((type = 'STANDARD'::gcud."enum_Posts_type") AND (title IS NULL)) OR ((type = 'QUESTION'::gcud."enum_Posts_type") AND (title IS NOT NULL)))) |

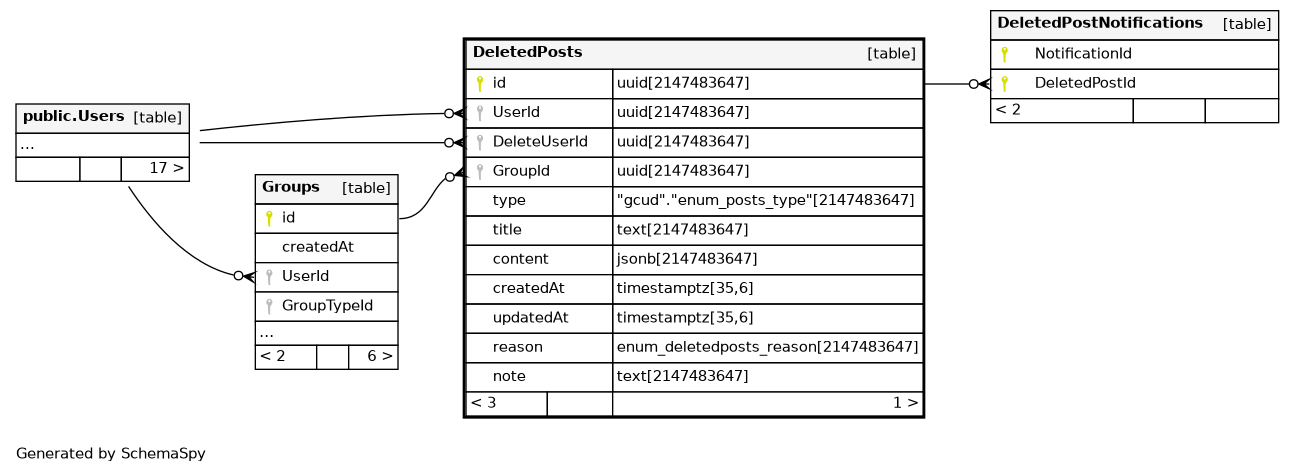

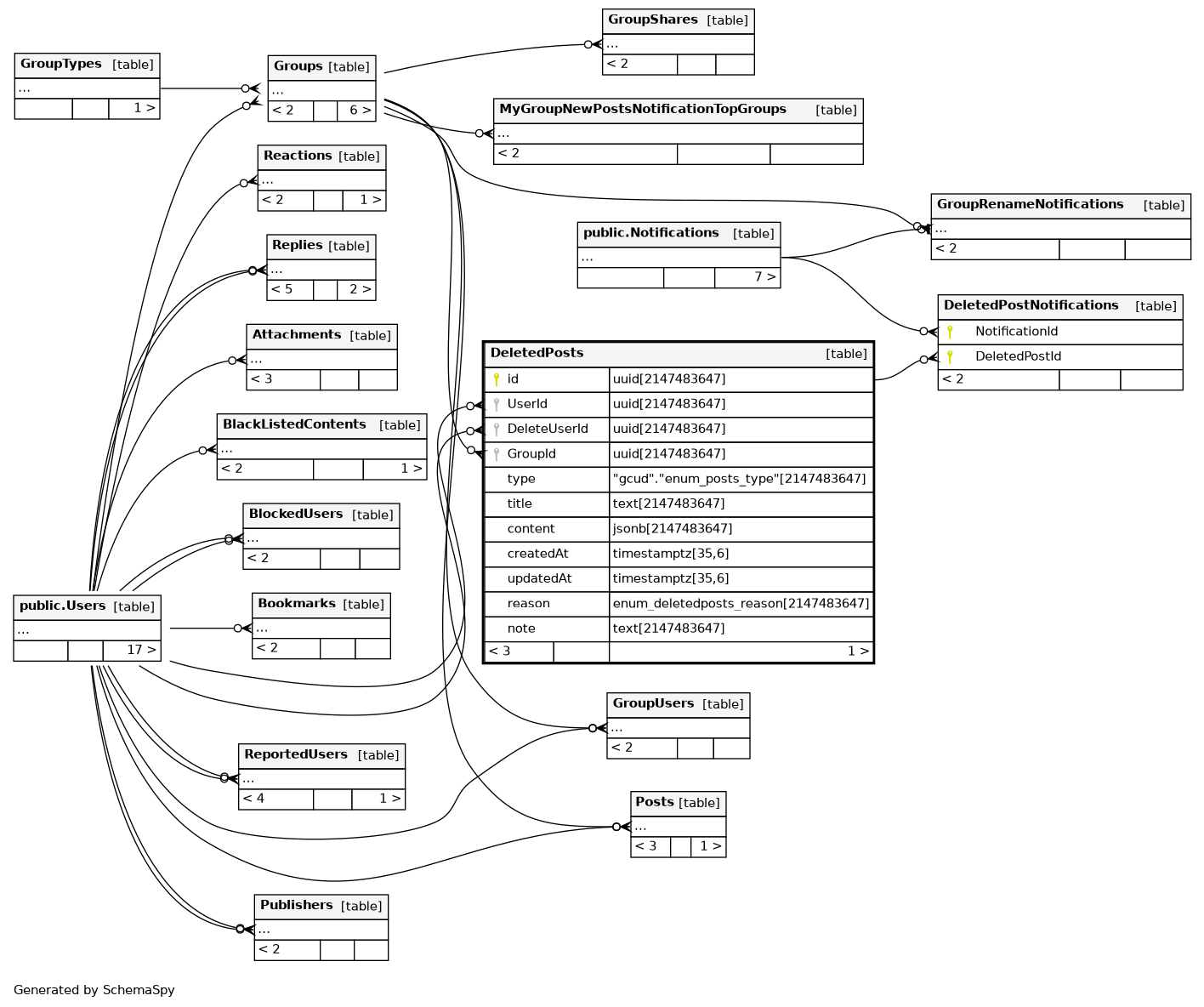

Relationships
Close relationships within degrees of separation
