Orders


Columns

Column Type Size Nulls Auto Default Children Parents Comments
id uuid 2147483647 public.gen_random_uuid()
AfterOrderPaidNotifications.orderId AfterOrderPaidNotifications_orderId_fkey C
ExpertClassOrderTickets.OrderId ExpertClassOrderTickets_OrderId_fkey R
ExpertClassReminderNotifications.orderId ExpertClassReminderNotifications_orderId_fkey C
OrderPayments.OrderId OrderPayments_OrderId_fkey R
shortId bpchar 8 null

Shortened order id for users to uniquely identify their orders.
CustomerId uuid 2147483647 √ null
Users.id Orders_CustomerId_fkey N

Foreign Key to Users Table, relating to Customer.
status enum_Order_status 2147483647 'PENDING'::"enum_Order_status"

Status of the order.
updatedAt timestamptz 35,6 now()
createdAt timestamptz 35,6 now()
PromotionCodeId uuid 2147483647 √ null
ExpertClassPromotionCodes.id Orders_PromotionCodeId_fkey R
gaCid varchar 255 √ null

google analytics customer id, for offline tracking purpose
platformCreatedOn enum_ExpertClass_PlatformOption 2147483647 null

Denotes the platform on which the order was created. Please note that this column is NOT meant to be used for any business logic and is purely for data monitoring purposes for the business team. Also, there is a column in the ‘OrderPayment’ table named ‘paymentProvider’ which denotes the payment provider for the paid order. This column and ‘paymentProvider’ column are not exactly coupled. There is a possibility of this column having value ‘web’ and ‘paymentProvider’ column having value GOOGLE_PLAY, in which case the data would be invalid. There is no database constraint to this for now and application is responsible for setting the right values in the right columns.

Indexes

Constraint Name Type Sort Column(s)
Orders_pkey Primary key Asc id
Orders_CustomerId_idx Performance Asc CustomerId
Orders_PromotionCodeId_idx Performance Asc PromotionCodeId
Orders_shortId_key Must be unique Asc shortId
Orders_status_idx Performance Asc status

Relationships

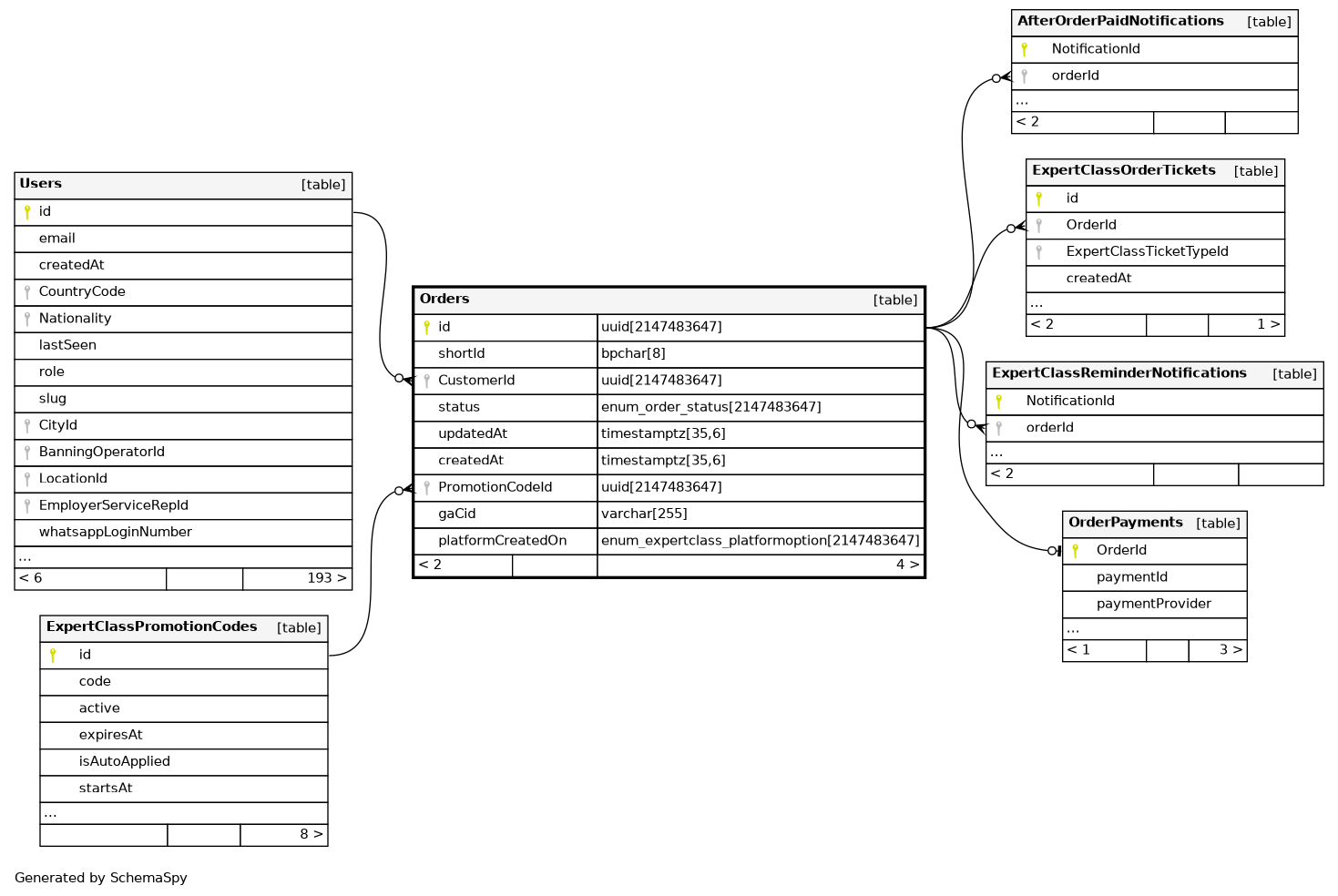

Close relationships within degrees of separation
